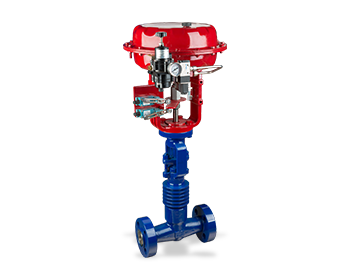

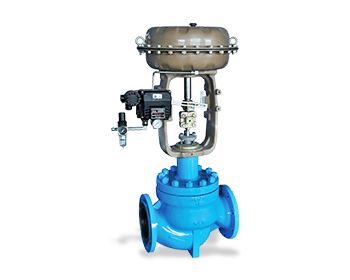

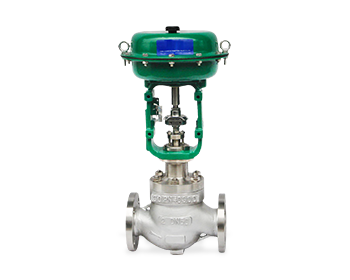

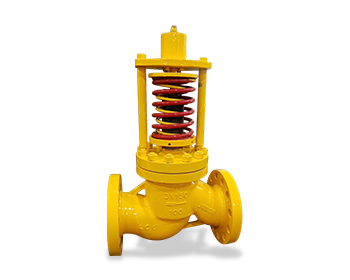

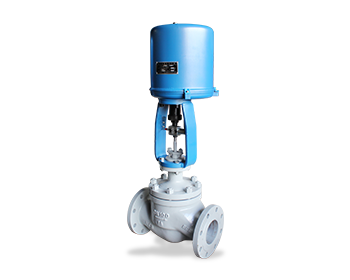

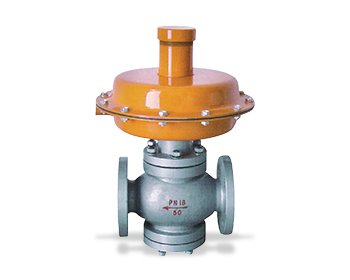

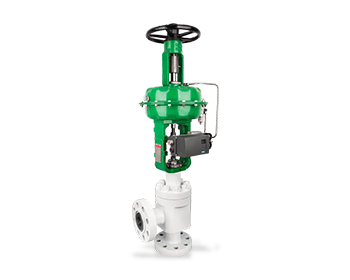

A regulating valve generally refers to a control valve. A control valve is composed of two main assemblies: the valve body assembly and the actuator assembly (or actuator system), and is divided into four major series: single-seat series control valves, double-seat series control valves, sleeve series control valves and self-operated series control valves. The variations of the four types of valves can lead to a great many different applicable structures, each with its own specific applications, characteristics, advantages and disadvantages.

◆ Nominal diameter: DN20-DN200

◆ Valve body material: stainless steel, cast steel, cast iron, forged steel

◆ Control methods: Switch type, regulating type, pneumatic control, electric control

Pneumatic actuator is an actuating device that uses pneumatic pressure to drive the opening, closing or regulating of valves, also known as pneumatic actuator or pneumatic device, but generally referred to as pneumatic head. Pneumatic actuators are sometimes equipped with certain auxiliary devices. Commonly used are valve positioners, limit switches, solenoid valves, and manual control mechanisms.

◆ Specification and model: AT32-AT400

◆ Body material: die cast aluminum

◆ Control mode: double acting, single acting

◆ Air Supply: 0.3-0.8Mpa

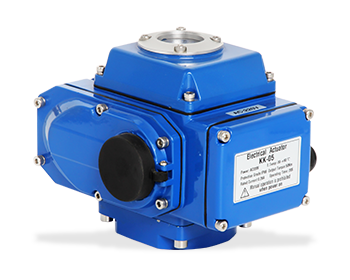

Electric actuators generally refer to electric actuators. The most extensive definition of an actuator is a driving device that can provide linear or rotational motion, utilizing a certain driving energy source and working under the action of a certain control signal. The actuator uses liquid, gas, electricity, or other energy sources and converts them into driving force through motors, cylinders, or other devices.

◆ Model: 20NM-2000NM (output Torque)

◆ Body material: die cast aluminum

◆ Control mode: Rotary Model, Liner Model, Multi turn

◆ Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, 415VAC

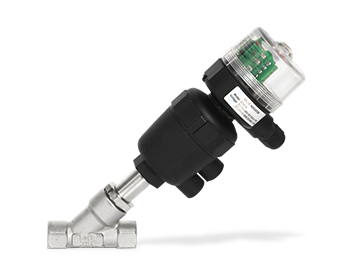

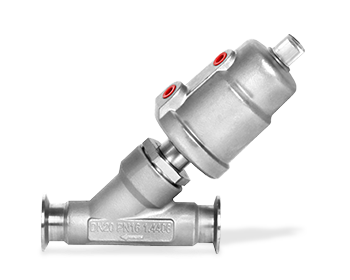

Angle seat valve is a directional angle seat valve operated by a single acting pneumatic actuator with spring safety protection. Angle seat valves are widely used for short-term frequent start-up, maintaining flow rate can save space, and have the characteristics of sensitive response and accurate action. When used in conjunction with solenoid valves, pneumatic control can accurately control gas and liquid flow rates. It can meet the requirements of accurate temperature control and liquid dripping.

◆ Nominal diameter: DN10-DN100

◆ Body material: SS304, SS304L, SS316, SS316L

◆ Connection : Thread, Welding, Tri-clamp, Flange

◆ Control methods: ON-OFF type, adjustable type, manual control, pneumatic control, electric control

Angle seat valve is a directional angle seat valve operated by a single acting pneumatic actuator with spring safety protection. Angle seat valves are widely used for short-term frequent start-up, maintaining flow rate can save space, and have the characteristics of sensitive response and accurate action. When used in conjunction with solenoid valves, pneumatic control can accurately control gas and liquid flow rates. It can meet the requirements of accurate temperature control and liquid dripping.

◆ Nominal diameter: DN10-DN100

◆ Body material: SS304, SS304L, SS316, SS316L

◆ Connection : Thread, Welding, Tri-clamp, Flange

◆ Control methods: ON-OFF type, adjustable type, manual control, pneumatic control, electric control

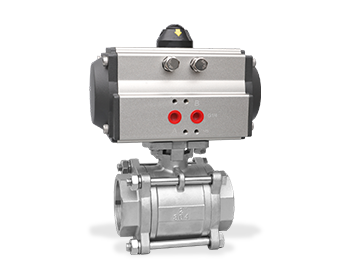

Pneumatic valve is a valve that uses compressed air to drive the movement of multiple sets of combined pneumatic pistons inside the actuator. The product is widely used in the transportation pipelines of various petroleum and chemical raw materials and products, such as flow control and cutoff of crude oil, refined oil, chemical liquids, etc.

 ◆ Nominal diameter

 Ball valve: DN15-DN200

 Butterfly valve: DN50-DN600

 ◆ Body material: stainless steel, carbon steel, cast steel, cast iron, UPVC，PVDF

 ◆ Control mode: ON-OFF type, adjustable type, straight through, three-way, multi-channel

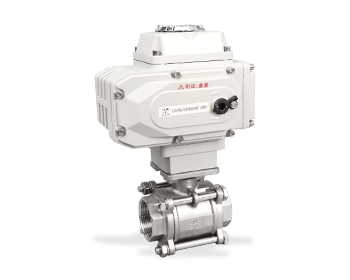

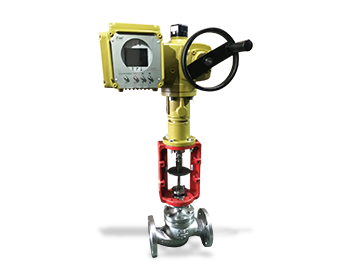

Electric valve is a device that controls valve opening and closing through an electric actuator. It can not only achieve the function of opening and closing, but also adjust the valve position of the regulating electric valve. The product is widely used in the transportation pipelines of various petroleum and chemical raw materials and products, such as flow control and cutoff of crude oil, refined oil, chemical liquids, etc.

◆ Nominal Diameter

Ball valve: DN15-DN200

Butterfly valve: DN50-DN600

◆ Body material: stainless steel, carbon steel, cast steel, cast iron, UPVC，PVDF

◆ Control mode: ON-OFF type, adjustable type, straight through, three-way, multi-channel

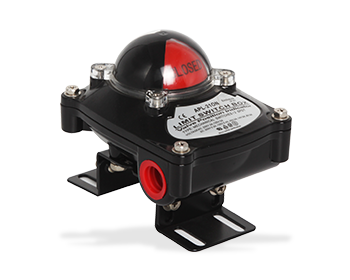

A pneumatic valve is an actuator that uses compressed air to drive and operate the valve. There are many kinds of accessories for pneumatic valves, and different accessories can achieve different control methods. Users can configure different accessories according to the different work of the valve.

◆ Positioner:

YT-1000R，YT-1000L，YT-1200R，YT-1200L

◆ Limit switch:

APL-210，APL-310，APL-410，APL-510，DS500

◆ Hand operated mechanism

◆ Solenoid valve: 24VDC, 220VAC, 110VAC

◆ Installation bracket connector: can adapt to various valves such as ball valves, butterfly valves, etc

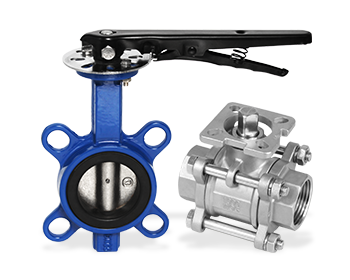

Industrial valves are control components in pipeline fluid transportation systems. They are used to change the cross-section of the passage and the direction of medium flow, and have functions such as diversion, cutoff, regulation, throttling, check, diversion, or overflow pressure relief. Valves used for fluid control, with nominal diameters ranging from extremely small instrument valves to industrial pipeline valves with diameters up to 10m.

◆ Nominal Diameter

Gate valve/Globe valve/Check valve/Ball valve: DN15-DN600

Butterfly valve: DN50-DN1600

◆ Body material: stainless steel, cast steel, carbon steel, forged steel

◆ Manufacturing standards: GB/ANSI/JIS

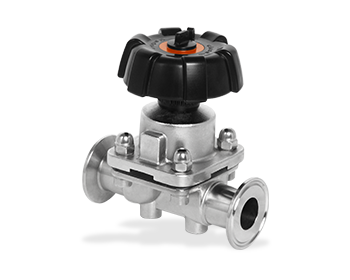

Designed specifically for the food, pharmaceutical and other industries, it strictly controls cleanliness standards and seamlessly meets the demands of hygienic production. It meets the high hygiene requirements of industries such as food and medicine. It is fully sealed to prevent pollution, easy to clean and corrosion-resistant.

◆ Nominal diameter: DN10-DN200

◆ Body material: SS304, SS304L, SS316, SS316L

◆ Connection methods: Thread, Welding, Tri-clamp, Flange

◆ Control methods:ON-OFF type, regulating type, manual control, pneumatic control, electric control
